EMPI

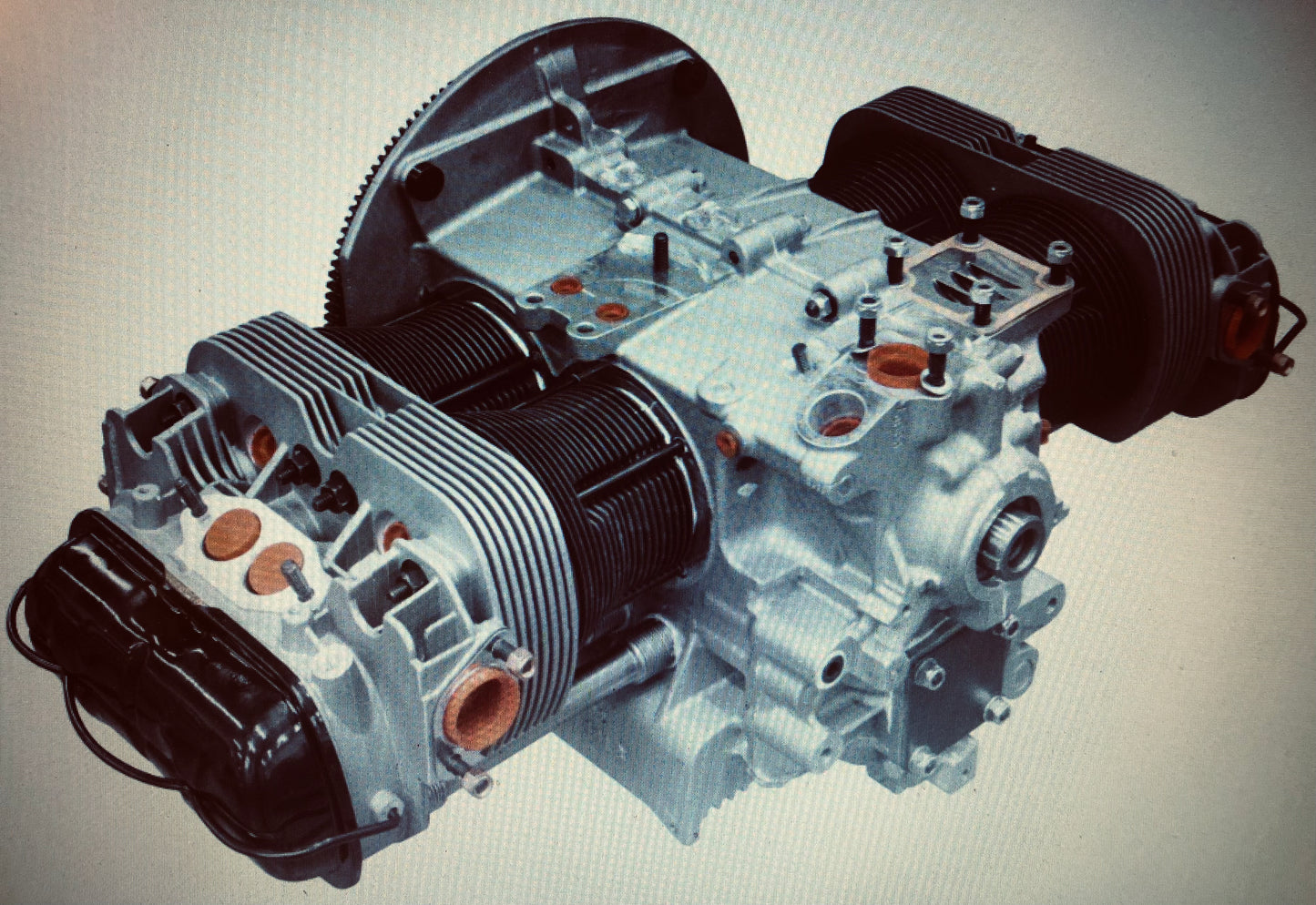

1600cc Long Block Engine | 98-0480-B
1600cc Long Block Engine | 98-0480-B
Couldn't load pickup availability
Product Description
The EMPI 1600cc VW long block engine will get your car back on the road with stock VW performance and reliability. This long block engine comes backed by a 12-month/12,000 mile warranty. The 1600cc EMPI long block engine is built in Southern California by legendary VW racing legend Jack Sacchette. There's no core, no long lead-times, and no rebuilt components. Everything in this engine is brand new.
The EMPI 98-0480-B long block is assembled with name brand components from AutoLinea, Elring, EMPI, OSVAT, Mahle, Manton, Silverline and Schadek. This engine in particular includes a new AutoLinea aluminum case and AutoLinea dual port cylinder heads with OE style OSVAT valves, seats and EMPI proprietary 3 angle valve job performed on a Rottler valve machine at EMPI in Anaheim, California.
All EMPI Long Blocks are crated on a pallet, shrink-wrapped and ready to ship directly from EMPI. They arrive via truck-freight and delivery includes residential lift-gate service if necessary.
Can only be shipped to the lower 48 States.
- ENGINE CASE - AutoLinea, Standard, Aluminum Engine Case
- CRANKSHAFT- Direct Drilled, 69mm Stroke
- PISTONS & CYLINDERS - Mahle, 85.5mm Diameter
- RODS - OE Specification
- CAMSHAFT - Stock Cam with Flat Gear, .334" Lift, 250º Duration
- LIFTERS - Precision Ground and Heat Treated, 28mm
- FLYWHEEL - Stock Style, 4 Dowel Pin, 200mm
- GLAND NUT - Chromoly, Heavy Duty
- MAIN BEARINGS - Standard, Steel Center
- ROD BEARINGS - Standard
- CAM BEARINGS - Standard Thrust
- OIL PUMP - Schadek, 21mm with Cover
- HEAD STUDS - Chromoly, 8mm with Nuts
- PUSHROD TUBES - Stock Style
- HEADS - AutoLinea Dual Port Cylinder Head, EMPI Spec, Includes: OSVAT O.E. Style 35.55mm Intake and 32mm Exhaust Valves, 3 Angle Valve Job Completed on Precision Rottler Seat & Guide Machine at EMPI Anaheim
- PUSHRODS - Stock Length, Fully Assembled Hi-Performance Push Rods, 1.45mm (0.057") Wall Thickness
- ROCKERS - High Performance, Stock 1.1:1 Ratio
- VALVE COVER - Stock Steel Style, Black
- GASKETS - Elring Engine Gasket Set
